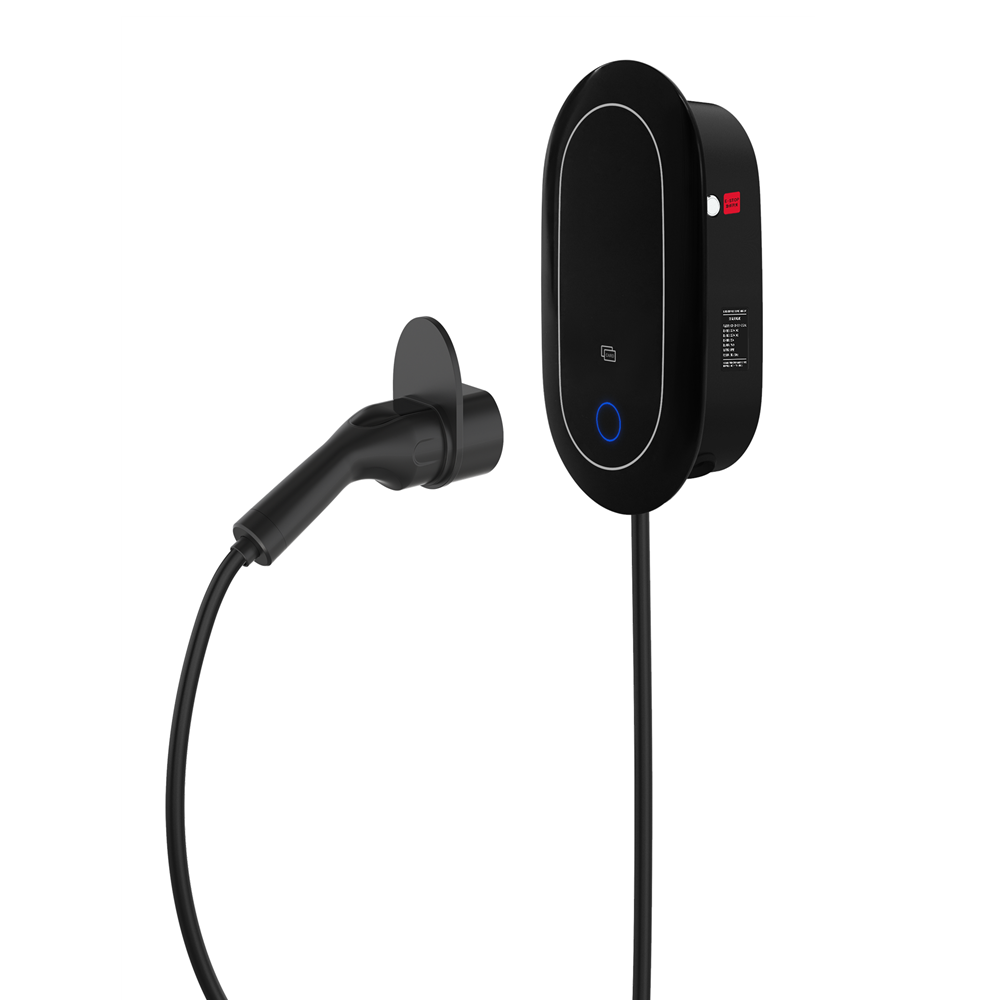

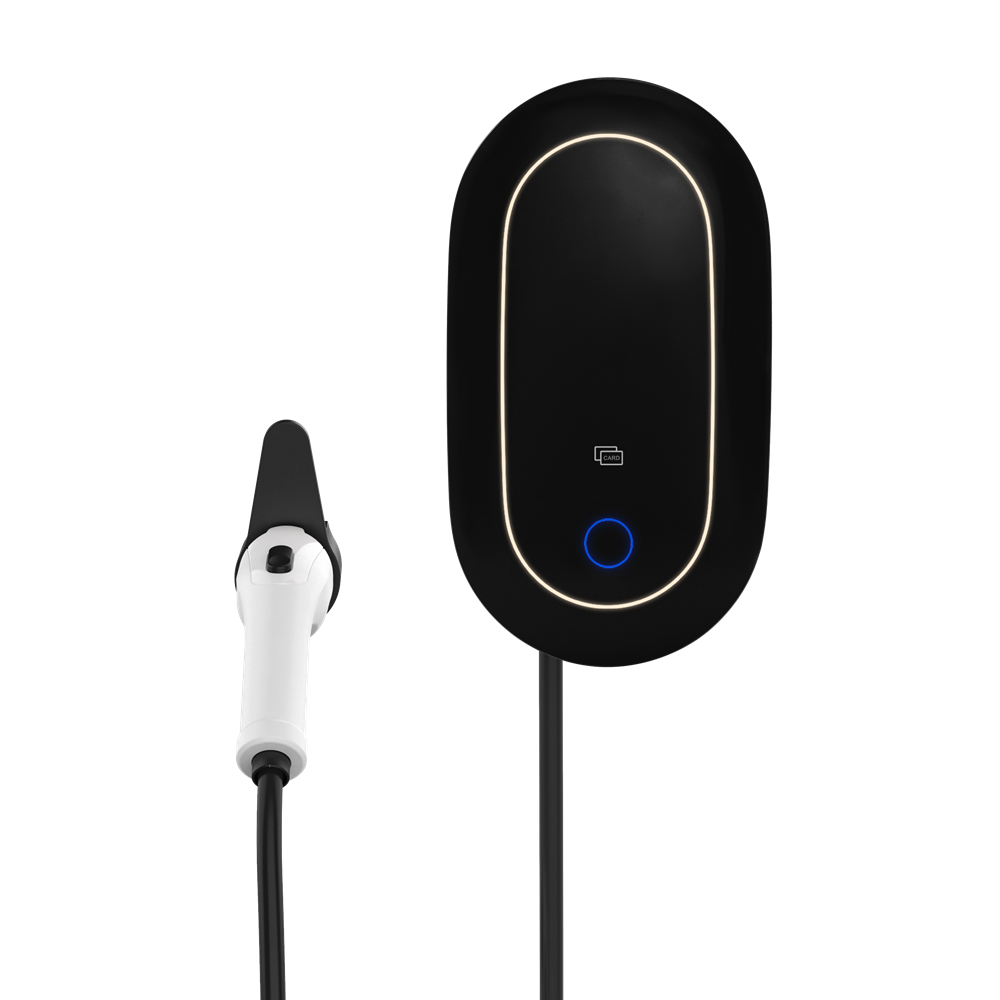

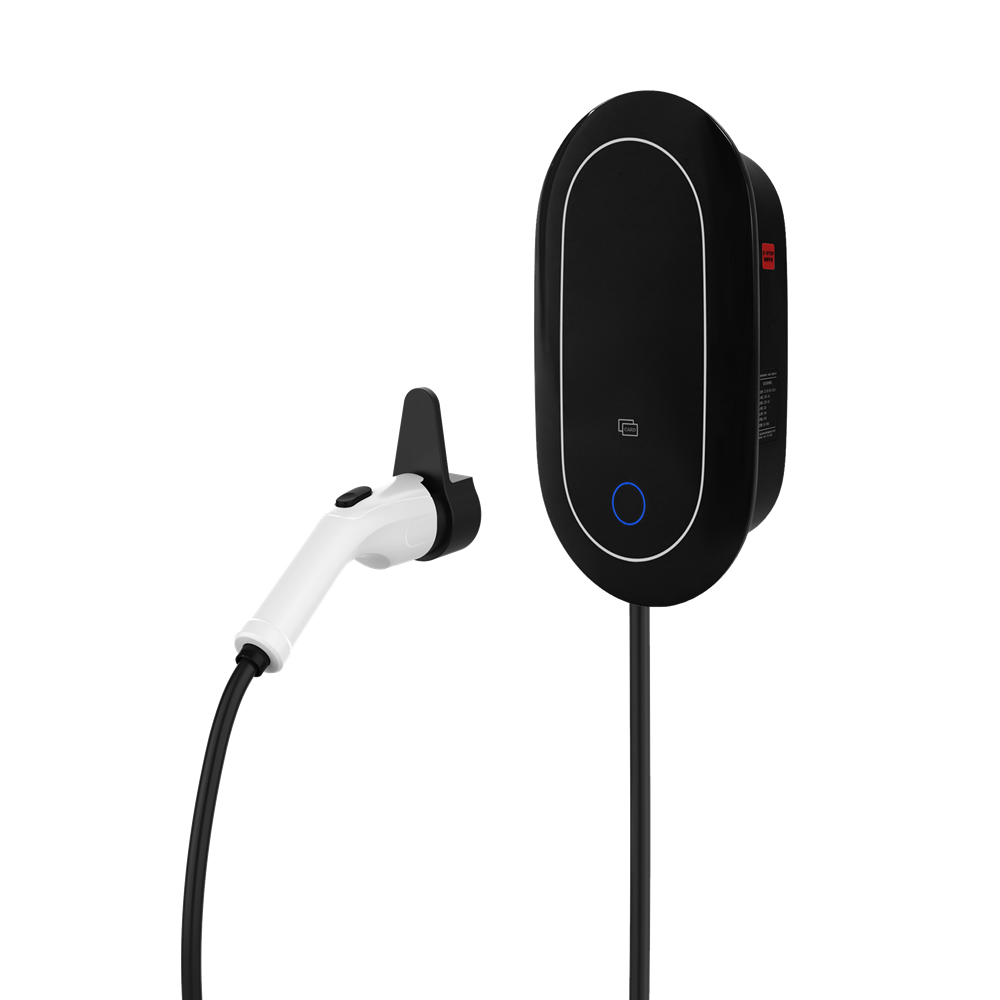

32A/16A EV Home Charging Station

Product Item:  C3-02-O01-Z32-S , C3-02-O03-Z16-S
Product Size:  360mm(L)*203mm(W)*100mm(H)
Input frequency:  50Hz/60Hz
Gun Size:  235mm(L)*58mm(W)*65mm(H)
Working Temperature:  -30℃~+50℃
Charging cable length:  Standard 5 meters (Customizable)
Protection registration:  IP55
Charging plug type:  Type 2 EU Standard
Rated Voltage:  Monophase AC220V; Threephase AC380V
Application Site:  Companies, homes, public places
Rated Current:  32A/16A

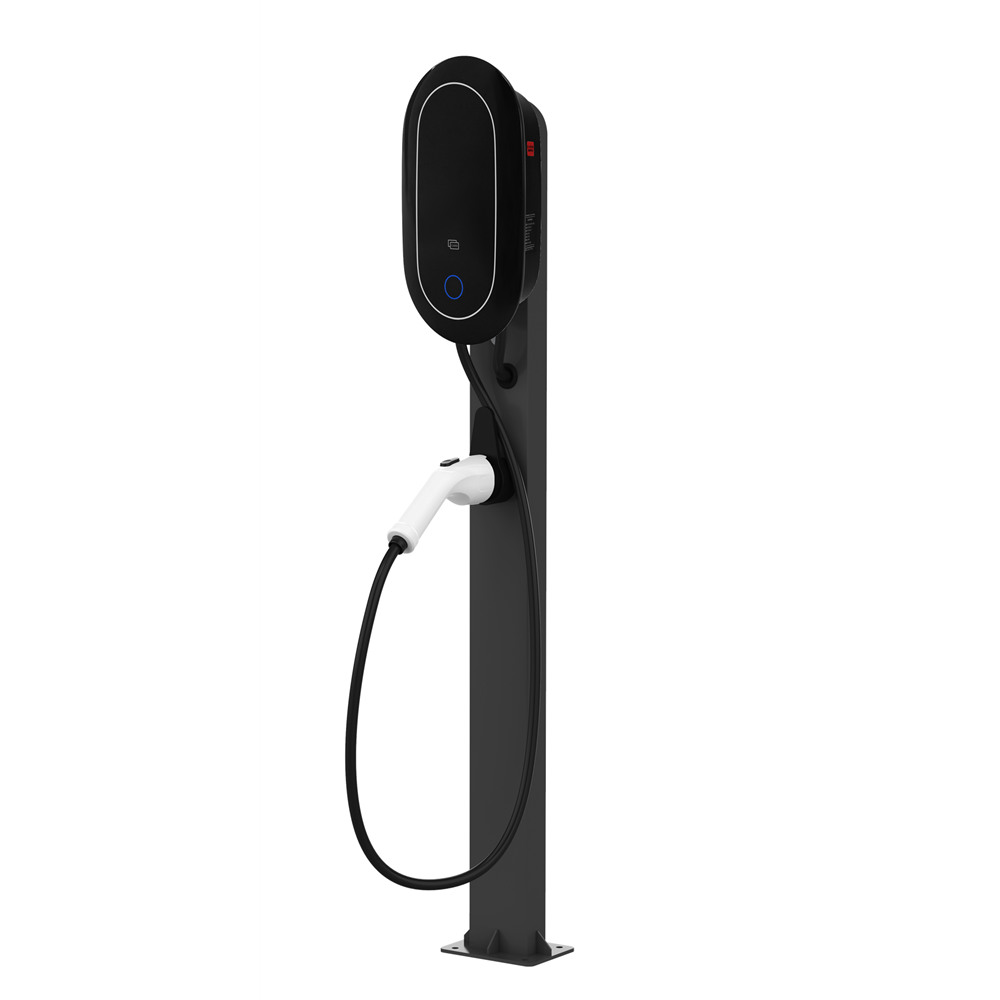

Installation Mode:  Wall Hanging /pedestal Hanging
Rated Power:  7.0Kw/11Kw
Color:  Black
GET A QUOTE

Prodcut description

With the development of battery and automobile industries, various models without AC ports have gradually appeared. The wall-mounted intelligent charging pile developed by our company can perfectly meet such needs. It is flexibly configured and can be installed in any small parking space or narrow site. Intelligent constant power, high charging efficiency, low power loss, the most cost-effective product for operators, built-in high-speed brushless DC fan, and silent, and super heat dissipation.

Prodcut Details

Safety Design:

1. Leakage protection

2. Overvoltage protection,

3. Under voltage protection,Over curren protection,

4. Ground protection, Over temperature protection,

5. Scram protection, Short circuit protection.

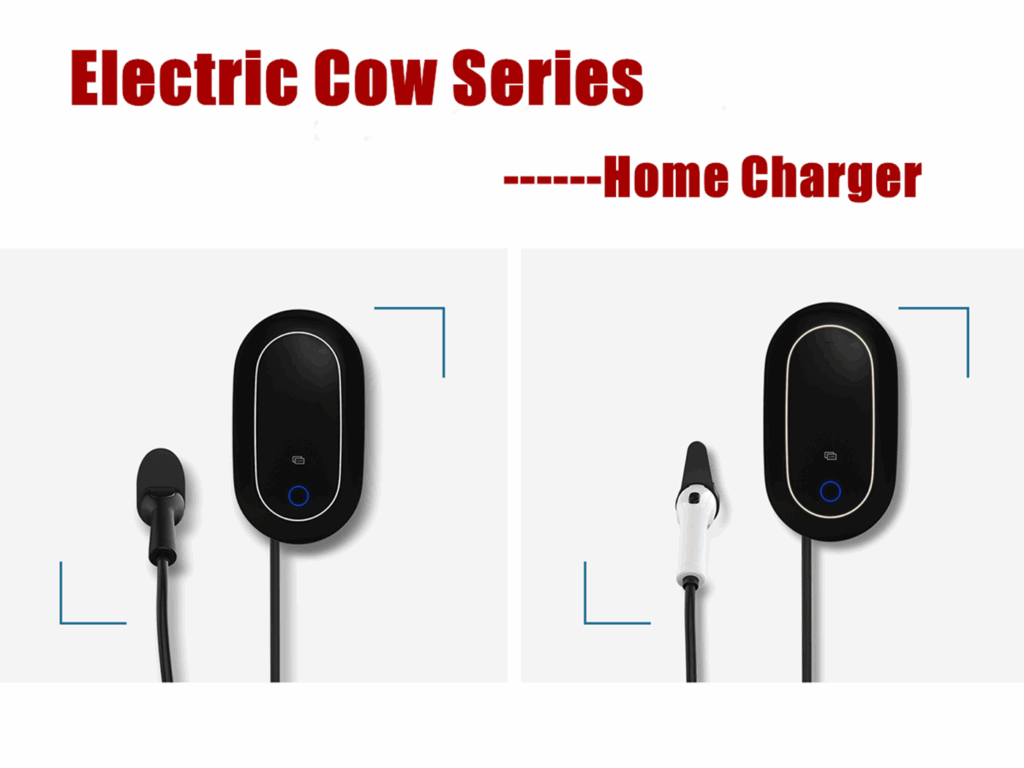

Electric Cow series of intelligent AC charging piles are made of carefully selected materials, high-precision injection molding, and one-piece molding; the sealed cabin technology is fearless of wind and rain; the fireproof door, car charging protection, and intelligent high-temperature blocking algorithm are safe and reliable; the high-standard chip, the command millisecond-level response, and the charging stability and performance are better.

Built-in high-standard main control chip

Besides safety, it brings an excellent charging experience

The shell has obtained the US UL certification, it will not deform or become brittle, and will not fade for 8 years. The high-standard chip allows the command to respond in milliseconds, greatly improves the charging stability, and makes the temperature control more sensitive.

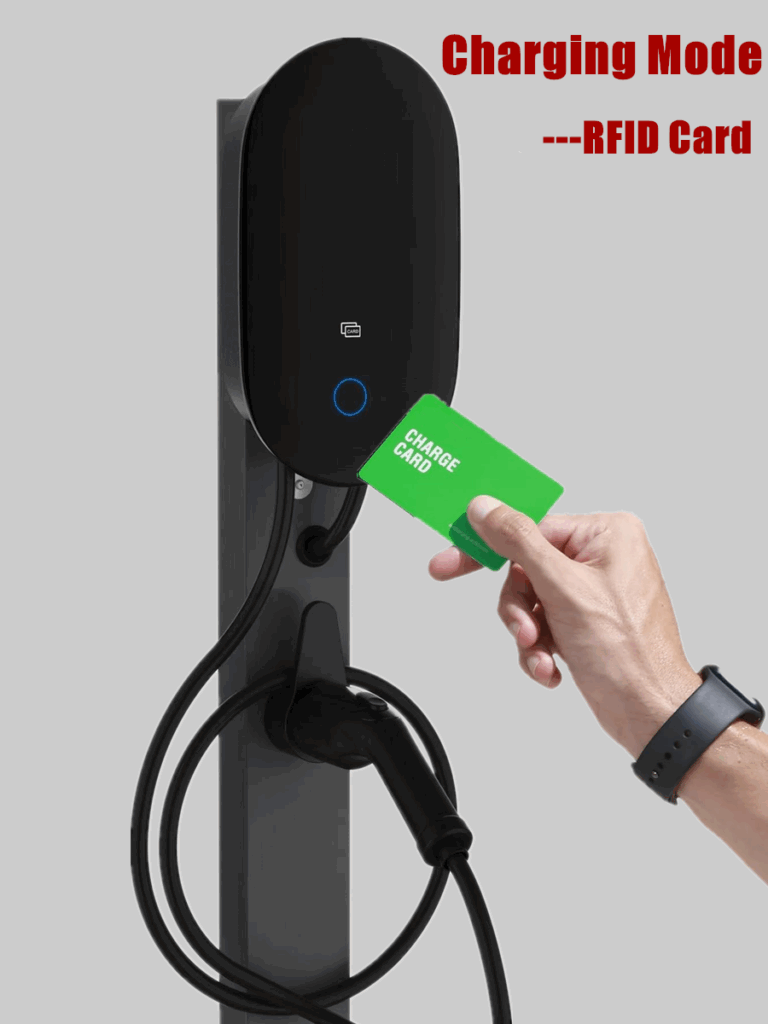

RFID Charging Advantage

  1. Convenience: Touchless operation, charge as soon as you swipe

Swipe to start: Users only need to bring the RFID card close to the sensing area of ​​the charging pile, without manually entering the password or operating the APP, which is especially suitable for fast charging at night or on rainy days

  1. Security: Prevent unauthorized charging and unauthorized use

No network dependence: No dependence on Wi-Fi/4G, card charging can still be performed even if the network fails

  1. Low cost and low maintenance

No need for complex configuration: Elderly or children can also use it easily, reducing after-sales problems caused by failure to operate the APP.

  1. Privacy protection

No binding of personal information: The RFID card of some charging piles only stores random IDs, and there is no need to associate mobile phone numbers/bank cards (compared to APPs that require account registration)

  1. Multi-user management

Flexible authorization: Properties or families can distribute multiple cards (such as to family members and tenants), and cancel lost cards at any time, which is safer than sharing passwords.

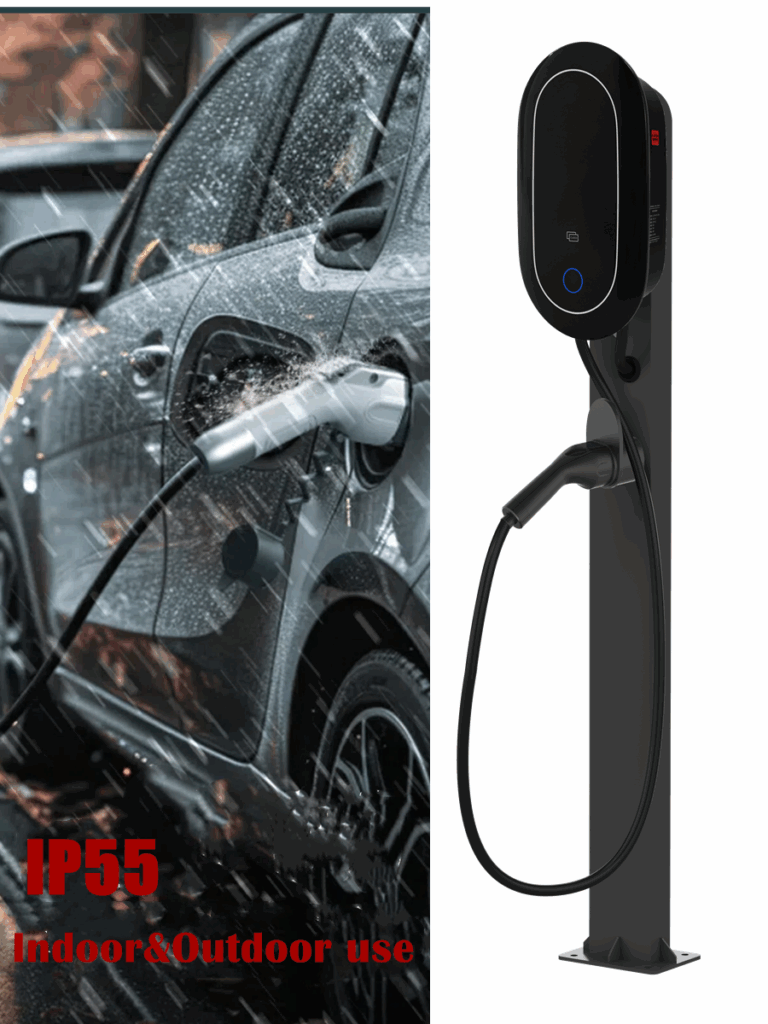

IP55 Protection

Protection level Dustproof capability Waterproof capability Applicable scenarios



Protection level Dustproof capability Waterproof capability Applicable scenarios
IP54 Dustproof (limited) Splashproof Mild outdoor environment
IP55 Dustproof (high efficiency) Water-sprayproof Most outdoor scenarios
IP65 Completely dustproof Water-sprayproof Harsh environment
IP67 Completely dustproof Short-term immersion Extreme environment



Why is IP55 often chosen for household charging piles?

Cost balance: IP55 is cheaper than IP65/IP67, but it has met the needs of most families.

Lightweight protection: No need for a completely sealed design, better heat dissipation (high protection level may affect heat dissipation).

Covering common risks: Can cope with daily rain and dust, no need for over-design.

Non-universal protection: IP55 cannot prevent direct impact from high-pressure water guns (avoid charging piles when washing cars) or long-term immersion.

Installation suggestions: Try to choose a sheltered location (such as under a canopy) to extend the life of the equipment.

If higher protection is required (such as IP66 protection against strong water jets), the actual environmental requirements and costs need to be evaluated.
