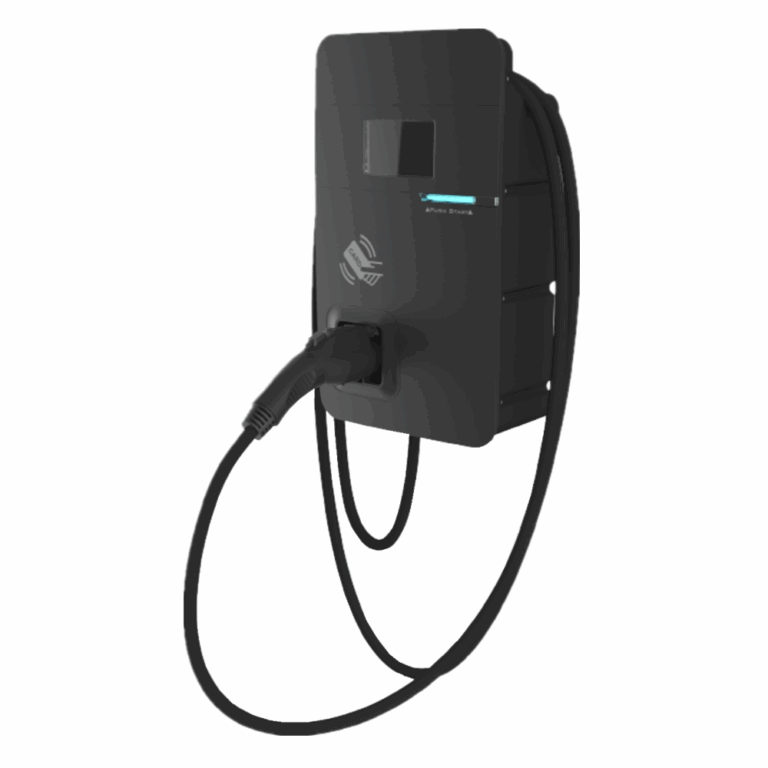

This is a flexible, plug-and-play solution that caters to on-site guests and your electric vehicle fleet. Network-ready for efficient back-end management, it includes RFID card readers for user identification. It easily mounts on walls or pedestals, delivering a 32A charge current.
48A-11.5kW Single Phase (North America ); 32A-22kW Three Phase (EU); 80A-19.2kW Single Phase
Versatile Charging
✳ RFID and QR Code Authentication
✳ Modern design with 5-inch LCD
Flexible Installation
✳ Wired/wireless CMS connection
✳ IP56/NEMA 4 rated
Interface Compatibility
✳ SAE J1772/IEC 62196-2 charging
✳ OCPP 1.6 J, OCPP 2.0.1, ISO 15118
Environmental Adaptability
✳ -30°C to +50°C operating range
✳ Natural cooling, over-the-air updates
✳Input Rating：Three-phase : 3P+N+PE ; 380~415Vac
✳Output Current：32A / 16A Type-E Socket (Optional)
✳AC Input Connection：L1/L2/L3/N/PE
✳Input Current：32A
✳Frequency：50Hz/60Hz
✳Certification：IEC 61851-1 , IEC 61851-21-2
✳Wireless Certificate：RED
✳Charging Interface：IEC 62196-2 Type 2 Plug
Satart ChargingÂ
Option 1. Plug and Charge. Insert the charging plug into the EV
Charging session starts
Option 2. Using a RFID card (Optional- Depends on the charger/location settings)
Insert the charging plug into the EVzerova copy
Tap the RFID card on the charger
Waiting for authorization
Charging session starts
STOP CHARGING
1. Unplug any time (disconnect the charging plug from EV to stop charging session) 2. Session ended (please return the connector to the holster)
 LOCKED CONNECTOR In some cases, the EV locks the connector. To unlock the connector, it may be necessary to unlock all doors of the EV, or use the ‘unlock charge connector button’ on the car key, if present.
 STOP  Charging will stop without user interaction: • In case of alarm/hazard.Â
• When the battery is full, the charge session stops automatically.
• When the maximum charge time set by the operator/owner has been reached.
Â
RFQ:
Q1.Do you provide samples?
Of course, you are welcome to call us for consultation and learn about our sample policy.
Q2.Do you accept OEM ODM orders?
Yes, of course. We also have a minimum order quantity requirement for OEM ODM orders.
Q3.When will you deliver?
For small orders less than 100, we have inventory and can ship within one week after receiving your deposit; For bulk OEM orders, we will ship follow order contract.
RFQ:
Q4.How do we ensure quality?
Before mass production, it is always a pre production sample; We have a complete set of testing equipment to ensure that product quality meets certification requirements and inspection before shipment.
Q5.What services can we provide?
Acceptable delivery terms: FOB,CIF,EXW;
Accepting payment currencies: USD, EUR, HKD, RMB and local cuurent;
Payment type accepted:T/T, Credit Card, Remittance, Cash.
Q6.Logistics
If the quantity is small, we recommend using express delivery such as TNT, DHL, UPS, EMS, or others. If the order volume is large, we recommend using sea freight and train , with your designated freight forwarder.
Nemo enim ipsam voluptatem quia voluptas sit aspernatur odit aut fugit, sed quia consequuntur magni dolores.
Xi’an Maleton is focus on new energy charging equipment, New energy vehicle related accessories. We strictly screen suppliers to ensure that all products meet international quality standards;
